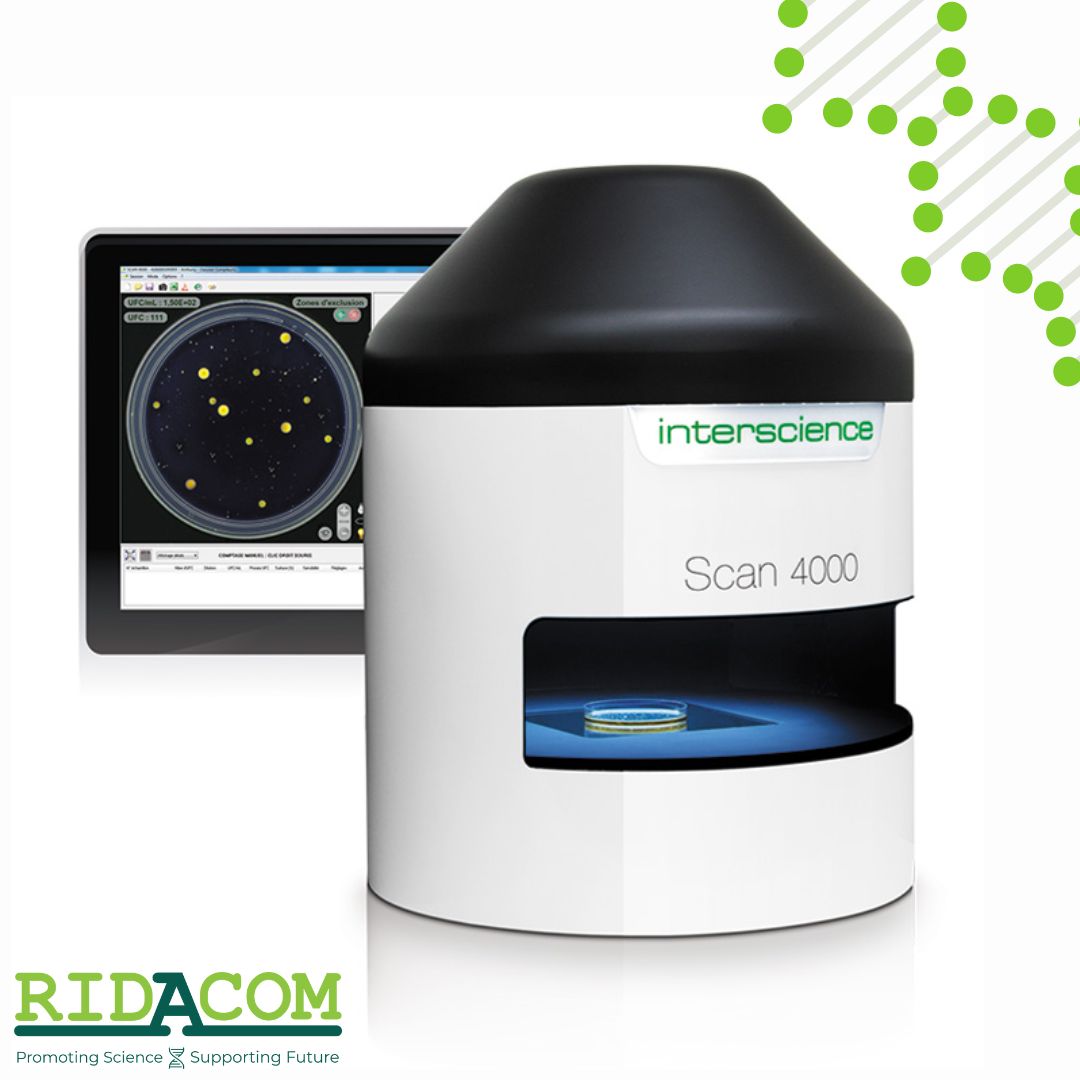

Scan 4000 is an automatic Ultra-HD automatic colony counter with unequalled image quality. It is adapted to all sizes of Petri dishes and any culture media. Its indirect lighting system gives great user comfort, high accuracy and excellent reproducibility. Scan 4000 is also an inhibition zone reader.
Main features:
- Minimum size of detected colony: 0.05 mm
- Camera: 5 megapixels - zoom x 69
- Counting on Ø 55 to 150 mm round Petri dishes and 120 mm square Petri dishes
- Counting on pour, surface, Spiral, circle mode plated dishes
- Counting on chromogenic agar, PetriFilmTM, MC-media PadsTM, Compact DryTM, Easy PlateTM, filtration membranes
- Inhibition zone reader
The largest range on the market

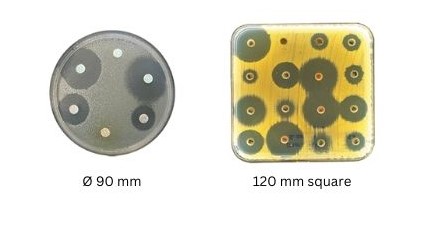

The Scan 4000 allows reading on Petri dishes of up to 150 mm diameter, and on square Petri dishes of 120 mm. This makes it the colony counter with the most possibilities on the market, for more flexibility in your work. Scan 4000 reads also inhibition zones on round or square Petri dishes.
Colony counting
Inhibition zone
Accuracy and repeatability
The counting of Petri dishes is long, tedious and can vary from one person to another. The Scan 4000 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 98%. The minimum colony size is 0.05 mm.
Total count before/after counting
21 CFR Part 11 included
The Scan software complies with FDA recommendations, particularly on audit trail and security of results.
The user account management, integrated in the software, allows the creation of up to 5 levels of rights. The Supervisor-Administrator has all the roles while the other roles are subject to certain rights. Password management secures user accounts.
Traceability
Data import
Scan 4000 connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink traceability system.
Data recording
After each approved counting, the Scan 4000 automatically saves and exports the counting parameters and results to a CSV file.
Data export
Scan 4000 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses. Usually, Petri dishes are thrown away after counting and no further verification is possible in the event of a claim. With Scan 4000, all reports are archived.
Export your results to your PC or archive them in CSV, ExcelTM, OpenOfficeTM, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.
Print of the results
All data, images, photos and results are exportable in printable reports, sca, pdf, jpg, xls, csv.
White LED Dome lighting: reflection and shadow free
Petri dishes are difficult to lighten as they are transparent and reflective. Heterogeneous lighting creates artefacts on the edge of the agar and on the sides of the Petri dish. These artefacts may be counted as colonies and can ruin an accurate counting.
We have designed a white diffusing dome for 360° lighting without reflections or shadows. The lighting is spread evenly everywhere and allows you to count the colonies on the entire surface.
Ultra high resolution camera
Equipped with a German 5 megapixels camera and a Japanese lens, the Scan 4000 offers the best image quality of the INTERSCIENCE range. See details you would not see with your bare eye!
Reading 100% of the petri dish
Place the Petri dish where you want, the Scan 4000 automatically detects it and zooms on it. You can count on 100% of the surface of the Petri dish and avoid missing a colony nestled on the meniscus agar.
Traceability ensured with dataLink
With dataLink, you can track the sample from plating to automatic colony counting. Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.
Warranty
Scan 4000 automatic colony counters have 3-YEAR warranty (parts and labour) just by sending the warranty card back.
Applications
The Scan 4000 colony counter is used in the food, environmental, pharmaceutical, cosmetics, veterinary and public institutes research.
Take a look at Scan 4000 in this video:
