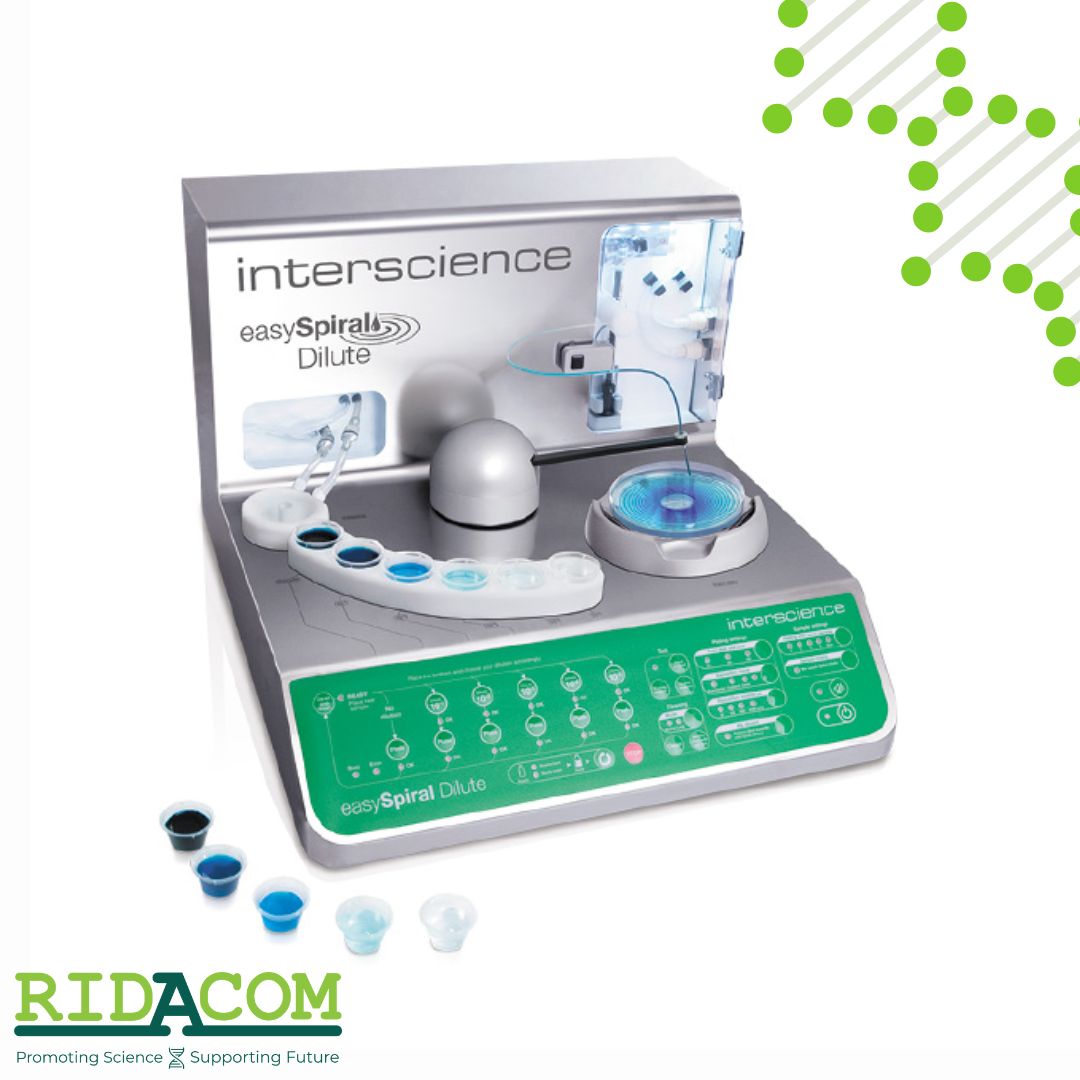

еasySpiral Dilute is an automatic diluter and plater of Petri dishes. It allows 1/10th serial dilutions and plating up to 6 log. dilution on 1 single Petri dish. For a sample of 30 to 1 x 1012 bacteria, no more manual dilutions and plating is automatic.
- Automatic cycle of 5 successive dilutions at 1/10th
- Plating modes: exponential, constant, circle, pour plate
- Counting range: from 30 to 1x1012 CFU/mL
- Plating cycle time: 25 to 134 seconds
A revolution for your serial dilutions!
You no longer need to prepare 9 mL tubes, easySpiral Dilute automatizes serial dilutions to10-5 or more. PATENTED
Place the sample
Place your sample in a beaker and choose your dilution factor: from 10-1 to 10-5
Dilute automatically
easySpiral Dilute automatically dilutes the sample up to 5 times.
Plate automatically
easySpiral Dilute plates a sample on 1 Petri dish from 30 to 1x1012 CFU/mL
The Spiral method
With the Spiral method, increase your analysis capabilities: without intermediate dilutions, perform standardized automatic plating with a counting range from 100 to 1 x 107 CFU/mL on 1 single Petri dish!
Save 50% of your time and consumables
easySpiral Dilute saves you 50% in consumables and 50% in time. 134 seconds for plating (1 disinfection + 5 dilutions + 1 plating of a dilution).
One touch plating
Plate easily and quickly your 55, 90 and 150 mm Petri dishes.
Exponential mode
The exponential mode is a plating in surface with a decreasing surface concentration. Plate 50 µL, 100 µL, 200 µL or program a customizable volume.
Obtain a countable Petri dish from 100 to 1 x 1012 CFU/mL
High accuracy glass syringe
Typical accuracy of glass syringe is 0.5 %. Higher accuracy than an ordinary pipette and no more pipet calibration.
Automatic disinfection
Overflow technology cleaning system and stylus disinfection. A light is activated in case of empty disinfecting liquid. PATENTED
High speed automation
The fast rotating arm adapts itself to all types of agar without risks of ploughing. It makes it possible to obtain a plating in 134 seconds (disinfection + 5 dilutions + 1 plating of a dilution). PATENTED
Traceability
With dataLink and dataLink pro, you can track the sample from plating to automatic colony counting.
Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.
Applications
easySpiral Dilute platers are used for all types of microbiological analyses in the food, pharmaceutical, cosmetic and public research institutes.
Take a look at the different models of easySpiral in the following video:
